Introduction

Chariot provides a codeless environment for deep learning training, so anyone from curious novices to experienced data scientists can train models without worrying about writing code, provisioning servers, or installing software.

Currently, the following computer vision tasks are supported:

• Image classification
• Object detection
• Image segmentation

The following natural language processing (NLP) tasks are supported:

• Text classification
• Token classification

Chariot’s model training functions are primarily built on top of PyTorch but also support additional training frameworks. For further information regarding its ecosystem of models and descriptions of the model architectures, navigate to the PyTorch Document Library. For more information on choosing the best architecture, check out our Data Science Fundamentals guide on neural network architecture. We also provide a complete list of supported models, sizes (number of parameters), depth (number of layers), and their disk footprint (size, in MB of a checkpoint) in the appendix.

Training a Model

Before training a model, you must determine your training parameters, data processing settings, and various other critical details that will go into the Training Run. Chariot provides default settings for many of these variables, and you can choose from very minimal options in the Quick Start training template as outlined below.

If you would like greater control and specification over the model training process, we suggest researching the optimal settings for your use case and having this information available prior to starting a Training Run so that the process is smooth and effective. You can specify all your model parameters and settings in the Full Configuration template as outlined below. Your training parameters, data processing settings, and resource selections can be provided either via the UI or the .

UI

To start a Training Run from the Chariot UI, open the associated project and click the Training Runs icon on the left-hand navigation bar. Click the Start New Run button to begin creating a Training Run in Chariot.

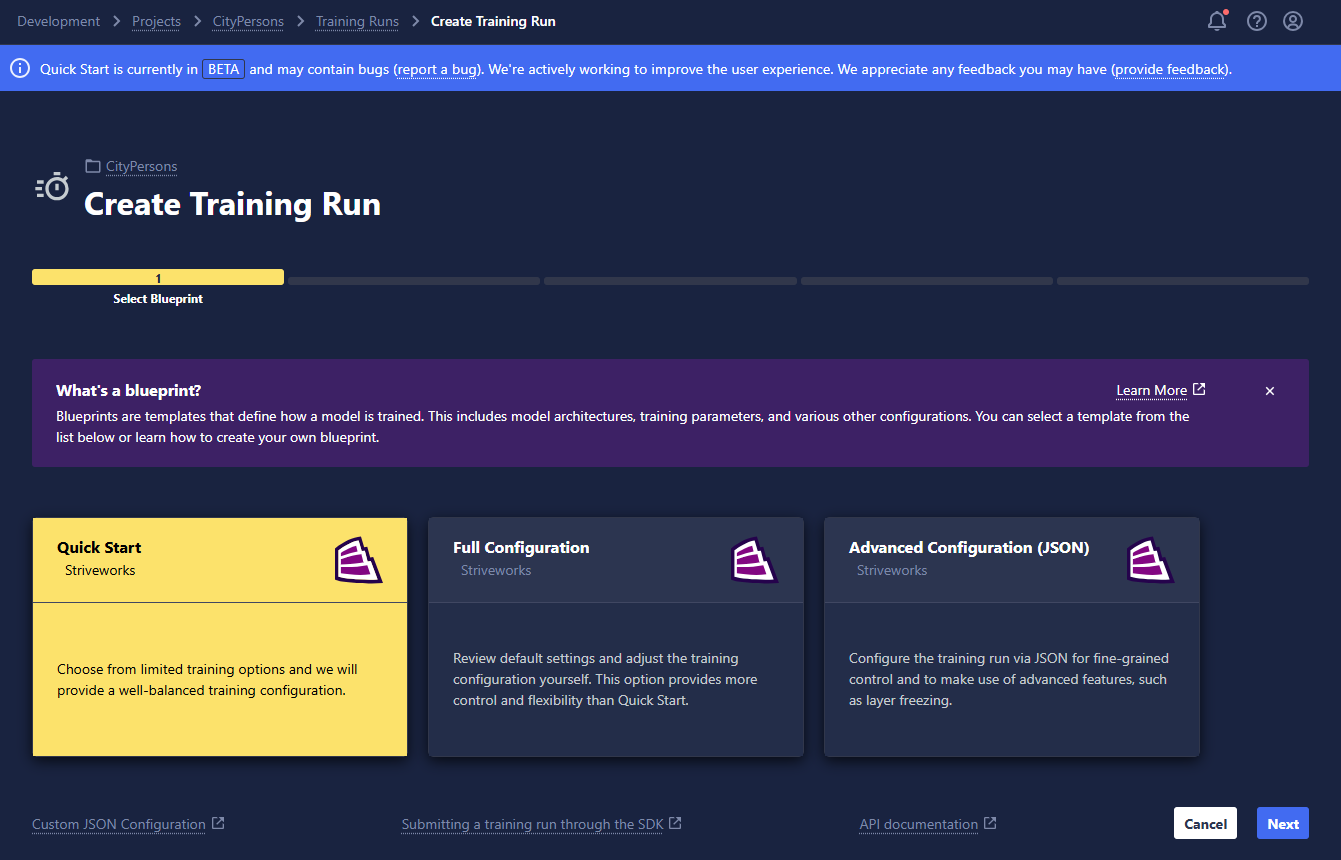

Select a Training Blueprint

Blueprints are training templates that guide users through different ways to train a machine learning model. You will see the following options to select from:

• Quick Start: This is a simple training template that is ideal for first-time users, less experienced practitioners, or those who simply wish to get started quickly!
• Full Configuration: This is a training template that provides a high degree of customization on model architecture, parameters, and other settings. This is ideal for data scientists who want to customize their Training Run based on experience, research, and use case.
• Advanced Configuration (JSON): This option is typically used by advanced users and Striveworks personnel and includes the ability to provide a JSON that matches an expected Training Run configuration.
• Any other custom training Blueprints created by users in the project. (Click here for more information on training Blueprints and how to create your own.)

If you selected Quick Start, the following instructions will guide you through the remaining steps. If you selected Full Configuration, skip to the Full Configuration instructions.



Quick Start

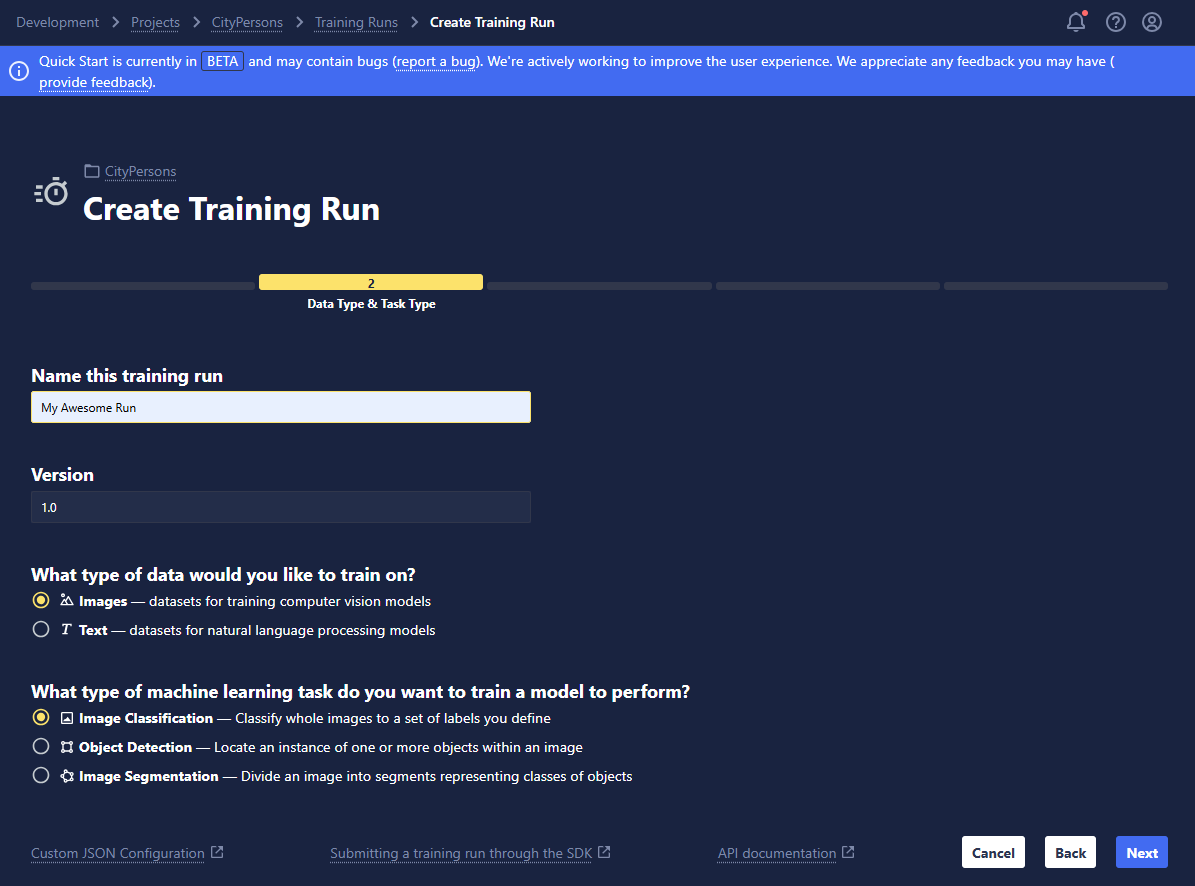

Name the Run and Specify the Task

• Name: Name your run whatever you'd like! We recommend including distinguishing characteristics in the name to help differentiate and manage your runs; this will be particularly helpful when you're viewing them in a list on the Training Run home page.
• Version: Set the version of this Training Run for your own records. By default, this will be set to 1.0, but it can be overridden by any string.
• Data Type: Select the kind of data you are training your model to make predictions on:
  • Images: For training computer vision models
  • Text: For training natural language processing models
• Task Type: Select the type of task your model will perform. Image classification, object detection, and image segmentation are available for computer vision model training while text classification and token classification are available for text-based natural language processing.

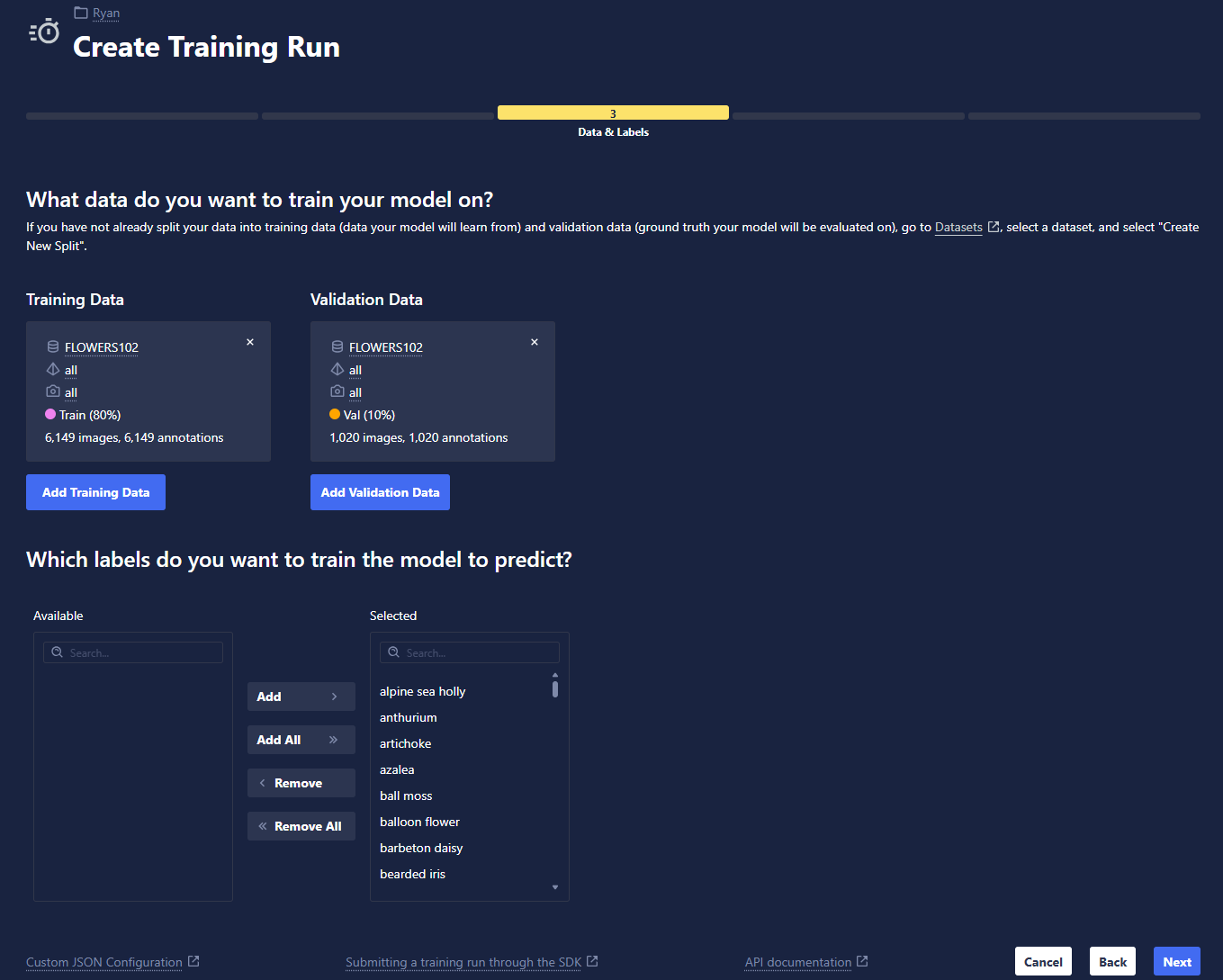

Select Your Dataset

• Add training dataset: Choose the training dataset you wish to train your model on, the specific View, and the Snapshot.
• Add validation dataset: Choose the validation dataset you wish to use during training to evaluate the performance of your model, the specific View, and the Snapshot.
• Negative samples: Select whether you would like to include negative samples (data that do not contain any cases of the selected labels you are training for) while training your model.
• Select labels: Choose a subset of the available classes of a dataset that you would like to train your model to predict.

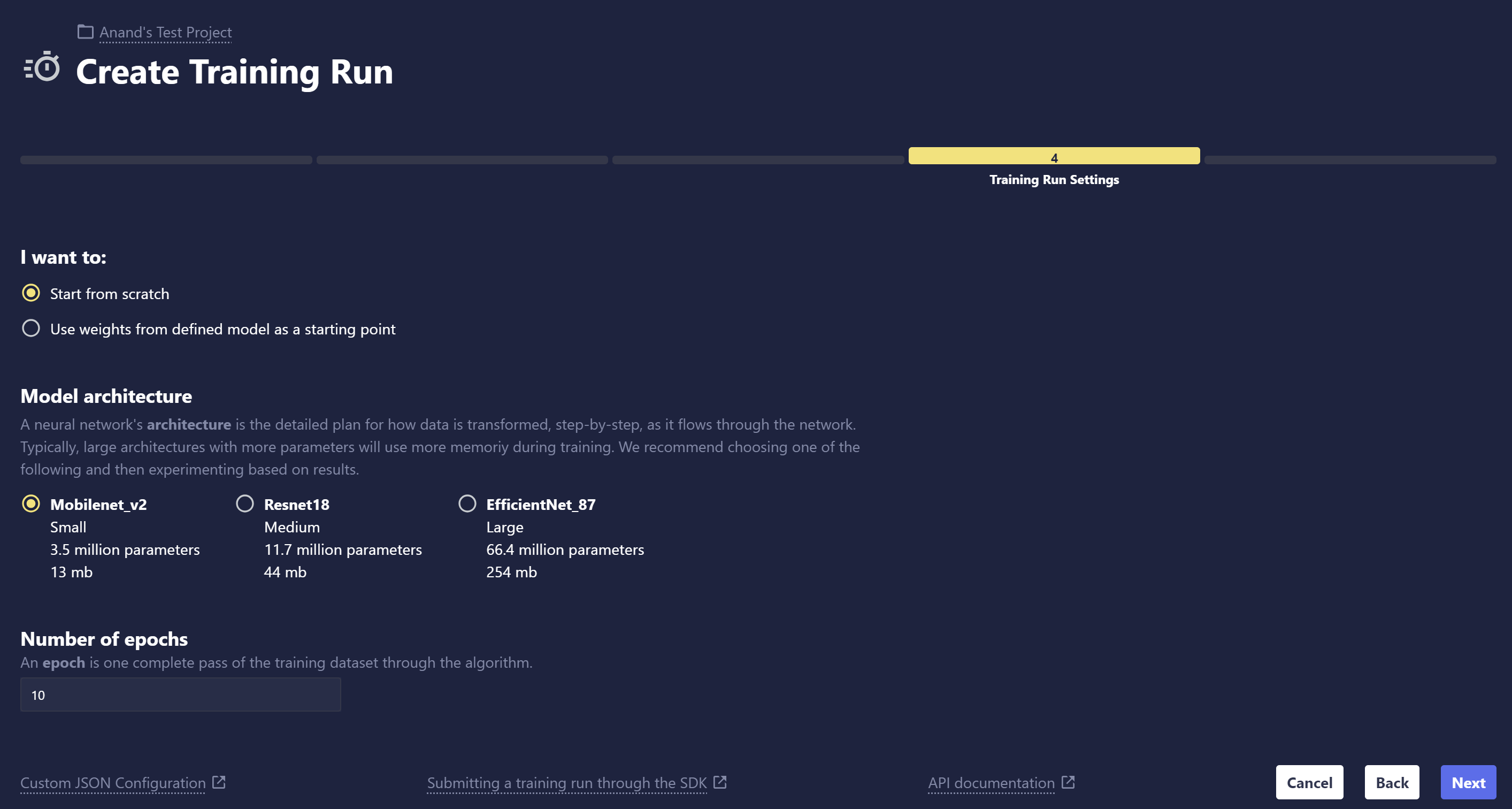

Choose Your Model, Training Settings, and Resources:

In this simplified training template, select some basic training characteristics based on your needs.

• Model settings: Choose Start from scratch to build your model without any preloaded model weights, or choose Start from previously trained model to fine-tune from an existing model in Chariot.
• Model architecture: If you choose to start from scratch, we provide three options for Image Classification that vary based on the size of the architecture. Typically, larger models require more computing power. The architecture that will best suit your use case varies widely based on many factors and can only be properly determined through experimentation. As a starting point, choosing a smaller model is a good way to get started and receive feedback to iterate on in the training process.
• Training length: Select the length of the Training Run. One epoch is one complete pass through the entire training dataset by the machine learning model. During each epoch, the model processes every data point in the training set once, adjusts its internal parameters (weights), and learns from the data.
• Resource selection: Specify the allocation of GPU and CPU resources for your Training Run. Please note that usable compute resources may vary depending on the other entities that your organization is actively running, like Inference Servers, Workspaces, and other Training Runs. If available, GPUs will show up in the drop-down menu; click Show Limits to get an idea of the limits of CPU cores and RAM that you can allocate for the run. The Resources Available message provides feedback on whether your chosen allotments are valid. For a more thorough deep dive into how to allocate resources effectively, refer to the Resource Management documentation.

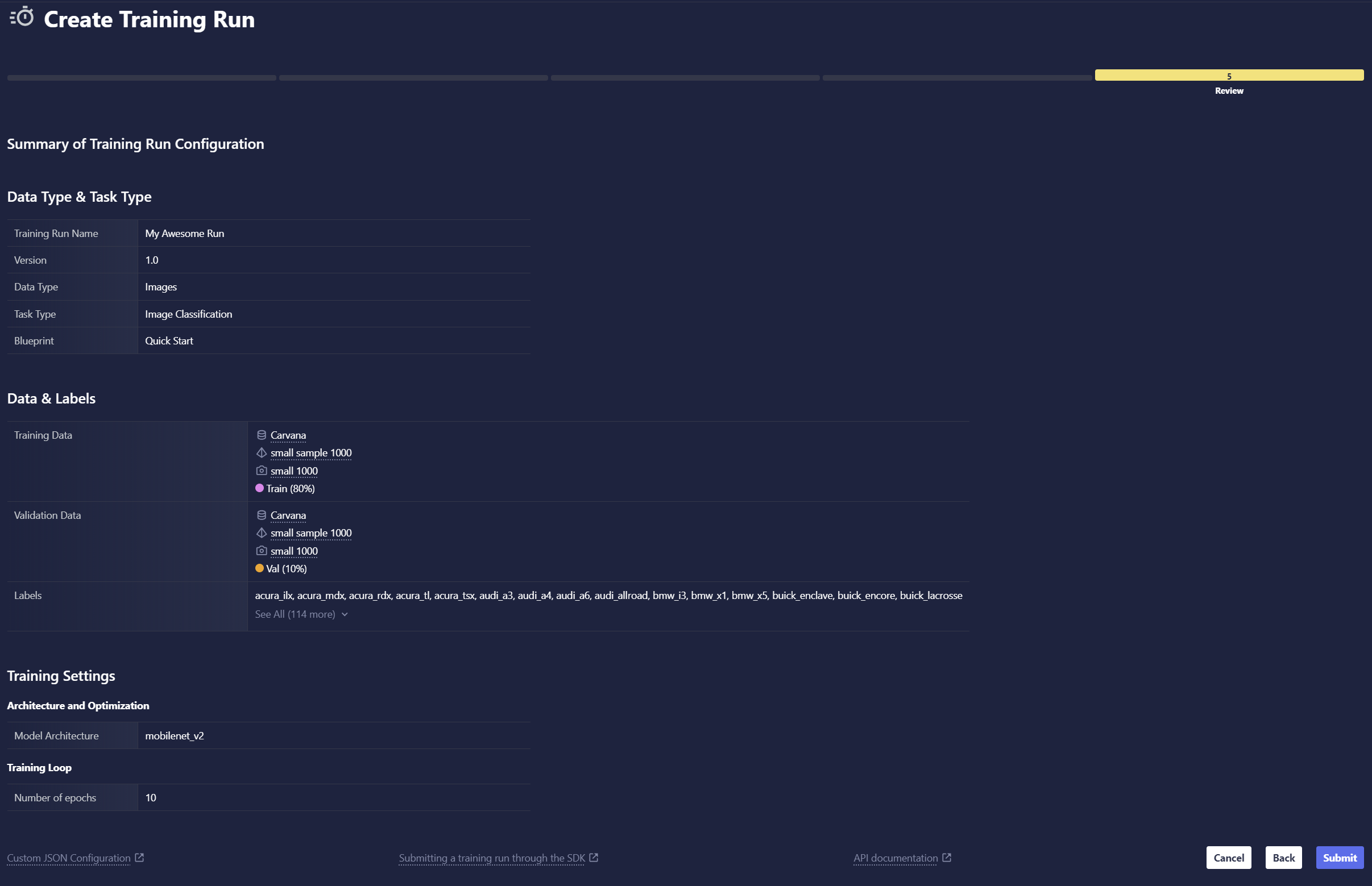

Review Your Selections

Review all the selections you made in prior steps. You can always go back to previous steps and edit any settings that you wish to change. When you're ready, click Submit to start training.



Full Configuration

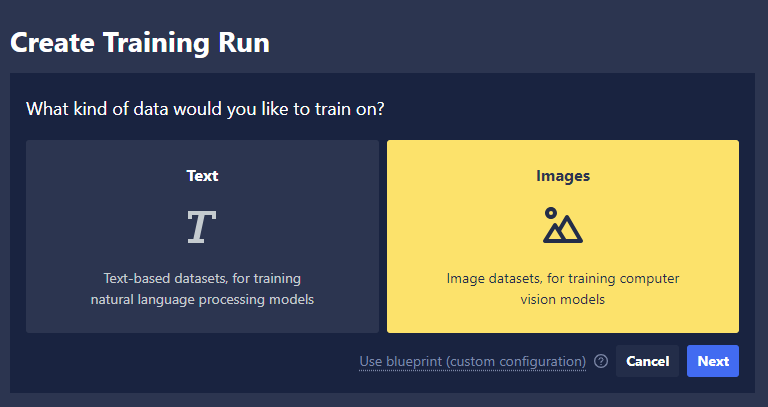

Data Type Selection

Select the kind of data you are training your model to make predictions on and click Next.

• Images: For training computer vision models
• Text: For training natural language processing models

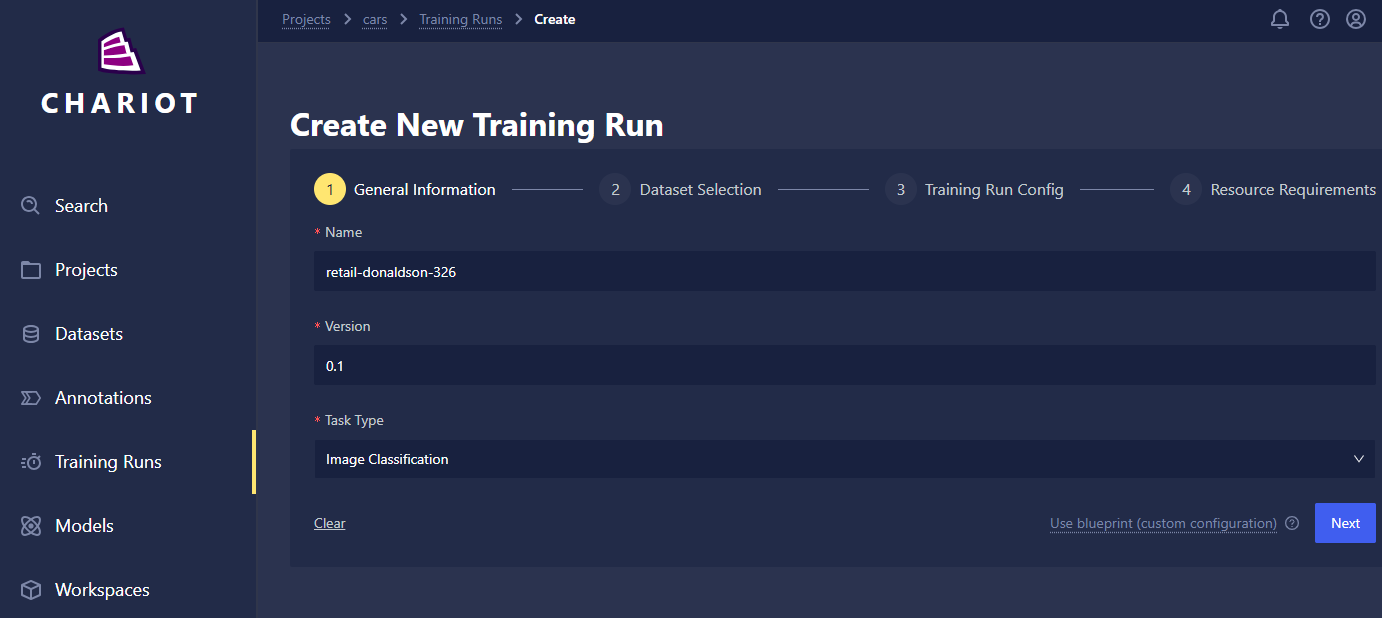

General Information

• Name: Name your run whatever you'd like! We recommend including distinguishing characteristics in the name to help differentiate and manage your runs; this will be particularly helpful when you're viewing them in a list on the Training Run home page.
• Version: Set the version of this Training Run for your own records. By default, this will be set to 0.1, but it can be overridden by any string.
• Task Type: Select the type of task your model will perform. Image classification, object detection, and image segmentation are available for computer vision models while text classification and token classification are available for text-based natural language processing models.

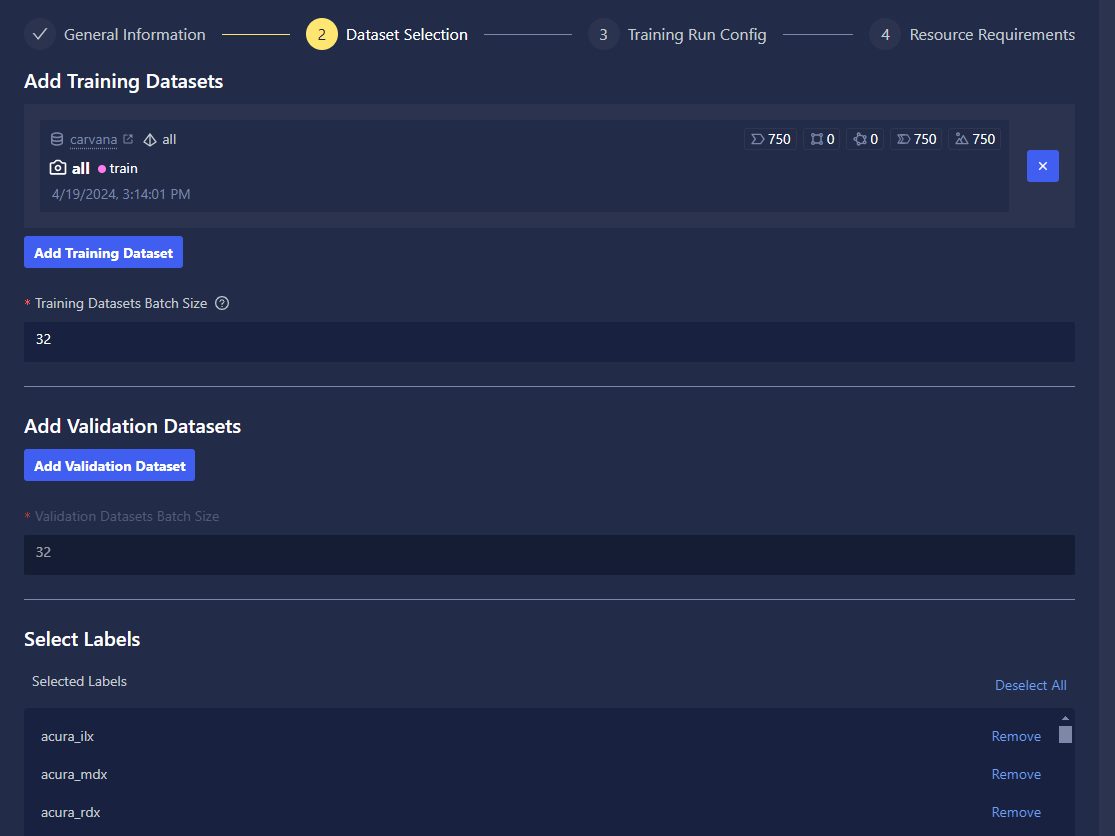

Dataset Selection

• Training and validation dataset selection: The training and validation dataset selection allows you to specify which Chariot-catalogued datasets to train/validate on.
• Label selection: The label selector allows training on a subset of the available classes of a dataset.

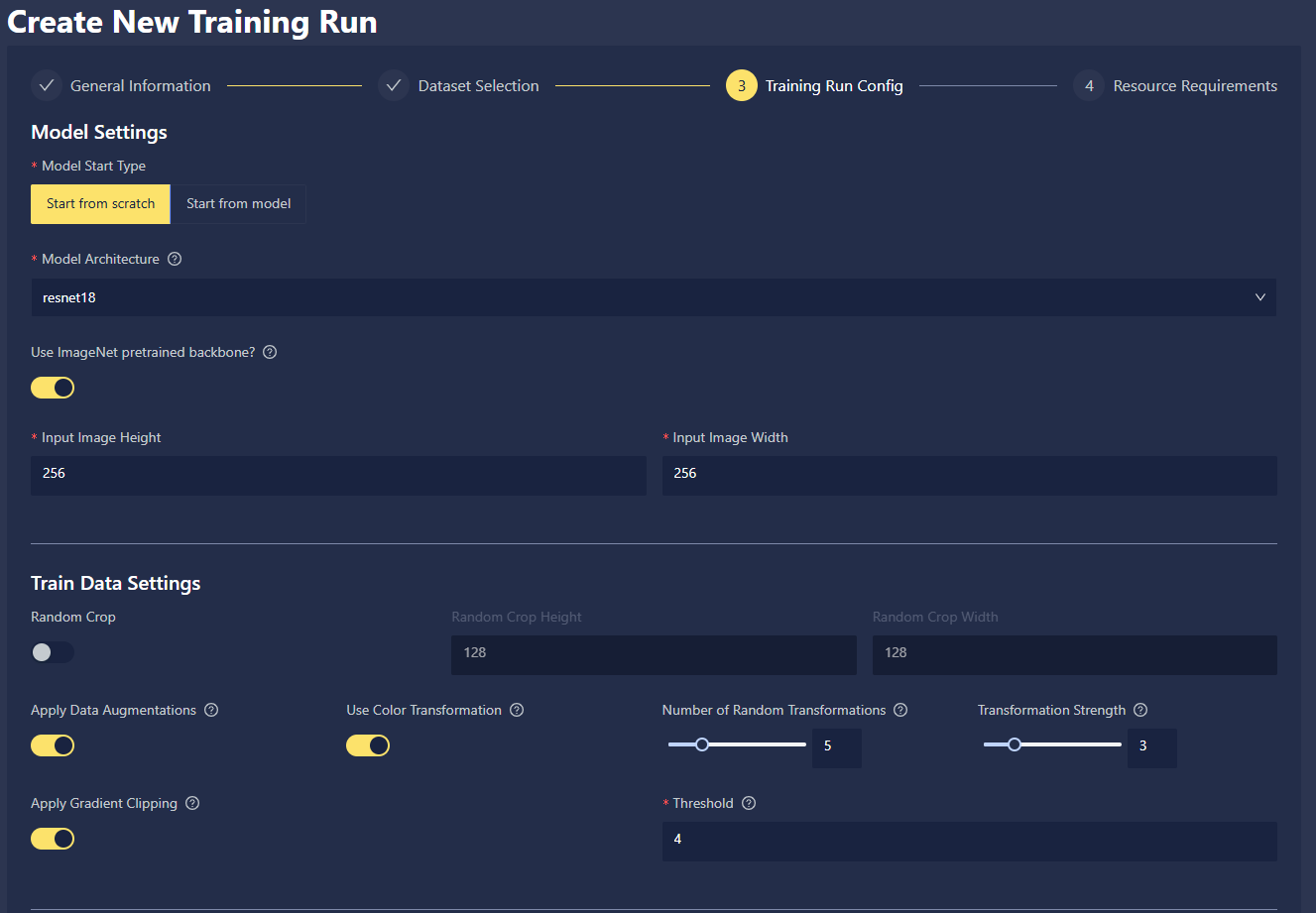

Training Settings

If you selected full configuration, you have the ability to completely customize your model settings and training parameters.

• Model Settings: Choose Start from scratch to build your model without any preloaded model weights, or choose Start from model to fine-tune from an existing model in Chariot. When starting from scratch, you must choose a model architecture. For the complete list of supported model architectures, along with their sizes (number of parameters and depth) and relative inference speeds, navigate to the page of our Data Science Fundamentals guide. For specific implementation details of the architectures, navigate to the PyTorch Document Library.
• Train Data Settings: You can choose to apply augmentations to your training data, which is applied based on the RandAugment strategy. If this fits your use case, you can read more about data augmentations in the Data Science Fundamentals guide.
  • Random Crop: A type of data augmentation that simply chooses where to crop at random.
  • Apply Gradient Clipping: Option to prevent model over-correction during training.
  • Apply Data Augmentations: This option enables various data augmentations like rotation, or horizontal shear.
    • Use Color Transformation: This option allows you to utilize computer vision color transformation, including auto contrast, brightness, color, contrast, equalize, posterize, sharpness, solarize, and invert.
    • Number of Random Transformations: This option allows you to set the number of random transformations applied during the training run.
    • Transformation Strength: This option allows you to set the strength of transformation applied in the above settings.

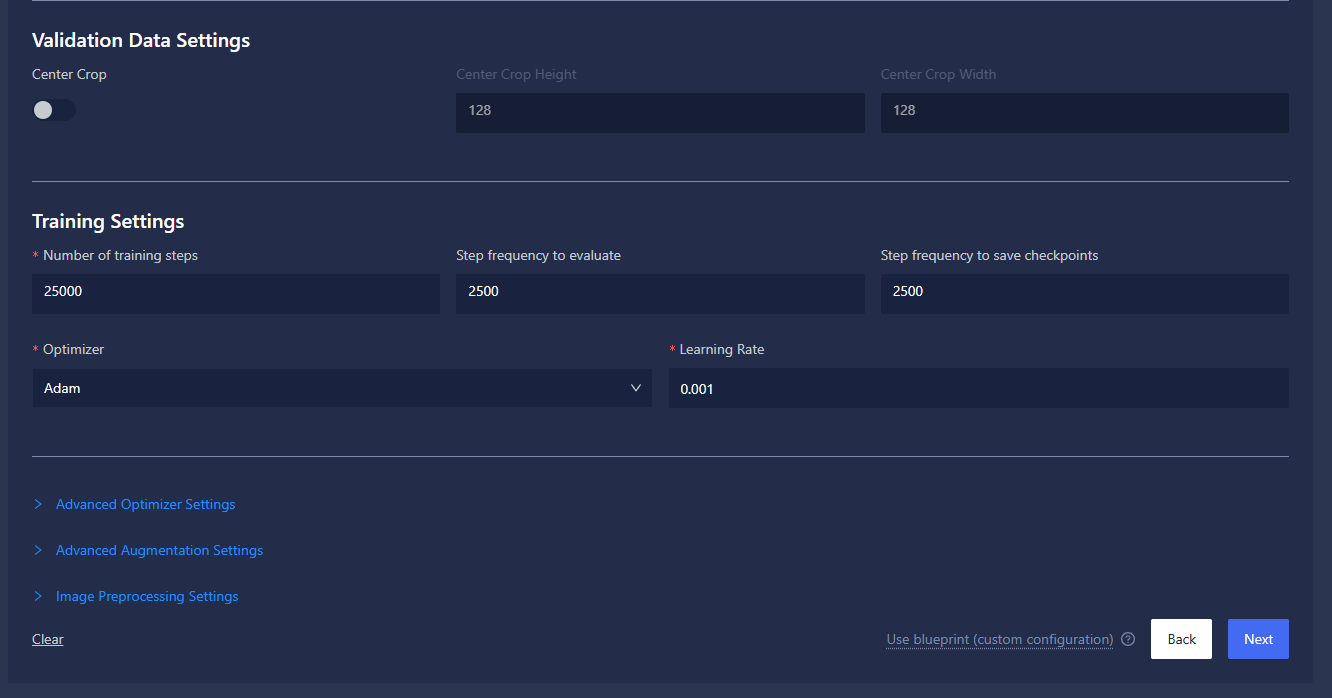

• Validation Data Settings:
  • Center crop: This option allows you to enable the center crop transformation for data validation, allowing images to be cropped to target aspect ratio.
  • Center crop height: This option allows you to set the height dimension for the target transformation ratio.
  • Center crop width: This option allows you to set the width dimension for the target transformation ratio.
• Training settings:
  • Number of training steps: This option allows you to set the number of optimizer steps to train for; note that this is not the number of epochs but rather the number of mini batches processed by the trainer.
  • Step frequency to evaluate: This option allows you to set how often to run evaluation against the provided validation dataset.
  • Step frequency to save checkpoints: This option allows you to set how often to save model checkpoints, which you can use to resume a run if it gets prematurely stopped either manually or by a system failure. It can also be exported to the models feature.
  • Optimizer: You have the option to use any of the PyTorch optimizers.
  • Learning Rate: This configuration controls the step size during optimization. It determines how much model weights are updated in response to the gradient of the loss function. See Learning Rate for more information.
• Advanced Optimizer Settings: You have the option to define the selected optimizers' parameters.
• Advanced Augmentation Settings: Allows disabling of specific data augmentations and color transformations if you have those applied.
• Image Preprocessing Settings: Contains configuration options for Linear Stretch and CLAHE.

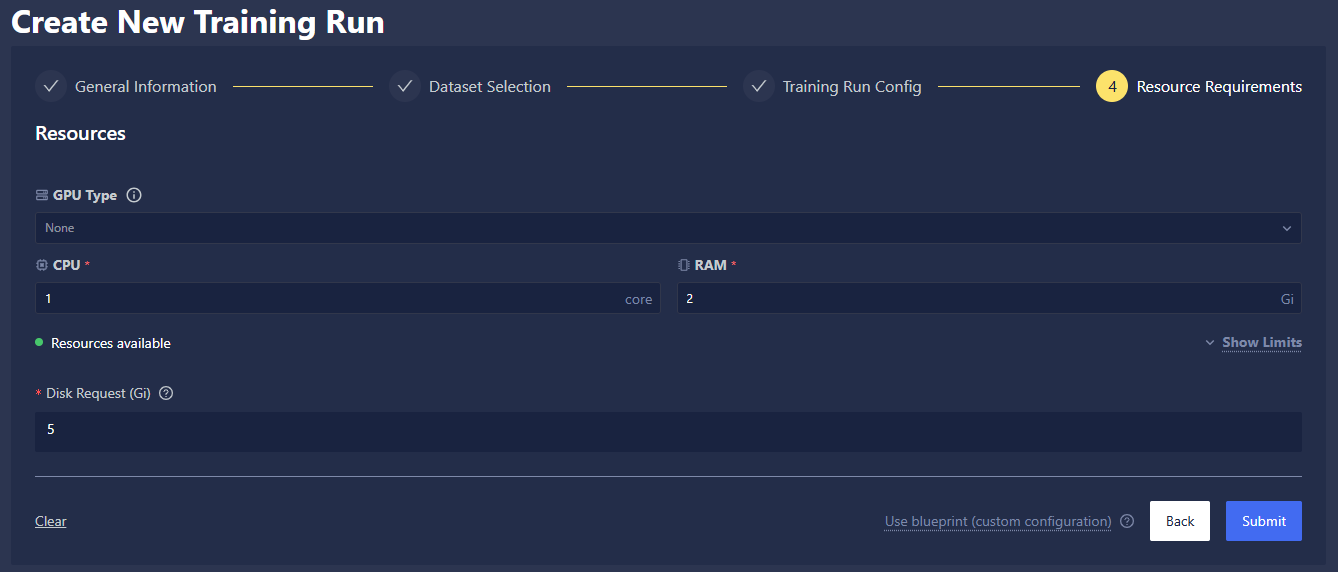

Resource Requirements

• Specify the allocation of GPU and CPU resources for your Training Run. Please note that usable compute resources may vary depending on the other entities that your organization is actively running, like Inference Servers, Workspaces, and other Training Runs. If available, GPUs will show up in the drop-down menu; click Show Limits to get an idea of the limits of CPU cores and RAM that you can allocate for the run. The Resources Available message provides feedback on whether your chosen allotments are valid. For a more thorough deep dive into how to allocate resources effectively, refer to the Resource Management documentation.

SDK

1. Training and validation data

from chariot.datasets import Dataset
from chariot.client import connect

connect()

# Get the train and val versions of the datasets.
ds = Dataset(
   name="<NAME OF DATASET>",
   project_name="<PROJECT NAME (OPTIONAL)>",
)
train_version = [v for v in ds.versions if v.split == "train"][0] #ensure "train" matches your expected split name
val_version = [v for v in ds.versions if v.split == "val"][0] #ensure "val" matches your expected split name

2. Model configuration

Model configuration is defined by:

• architecture: A string specifying which architecture to use. This depends on the given task.
• input_size: This is an object that specifies how the images should be resized. This is necessary for classification and detection tasks but optional for segmentation.

For this example, we will use the following configuration:

model = {'architecture': 'mobilenet_v3_small', 'image_net_pre_trained': True, 'input_size': {'height': 32, 'width': 32, 'apply': True}}

3. Optimizer configuration

The optimizer is an object that has the following two required fields:

• name: This is a string specifying which optimizer to use. See the PyTorch docs for the available optimizers and details on them. Typically, Adam is a good choice.
• learningRate: This is the learning rate to use. Typical good choices are between (0.0001 and 0.001).

We will use the following for the optimizer in this example:

optimizer = {'name': 'Adam', 'kwargs': {'learningRate': 0.001}}

4. Putting it all together

Construct your Training Run configuration:

train_dsv = [{
   "id": train_version.dataset_id,
   "version_id": train_version.id,
   "project_id": train_version.project_id,
}]

val_dsv = [{
   "id": val_version.dataset_id,
   "version_id": val_version.id,
   "project_id": val_version.project_id,
}]

labels = ["building"]  # a list of labels that we're training against

train_kwargs = {
   "n_global_steps": 10,             # how many optimizer steps to train for
   "global_step_eval_freq": 10,      # how frequently to evaluate
   "global_step_save_ckpt_freq": 10, # how often to save checkpoints
}

config = {
   "runform": {
         "train_data": {
            "datasets": train_dsv,
            "batch_size": 4,
         },
         "val_data": {
            "datasets": val_dsv,
            "batch_size": 4,
         },
         "optimizer": optimizer,
         "task_type": "Image Segmentation",
         "labels": labels,
         "model": model,
   },
   "train_kwargs": train_kwargs,
}

Retrieve the appropriate Blueprint ID for your run:

from chariot.training_v2 import lookup_blueprint_id

blueprint_id = lookup_blueprint_id(name="teddy_wizard")

Blueprints currently provided with Chariot include "teddy" and "teddy_wizard".

When constructing your config payload for Training V2, you can validate it prior to starting a run. You can do so with the following code:

from chariot.training_v2 import validate_run_config

validate_run_config(blueprint_id=blueprint_id, config=config)

To retrieve available GPUs:

from chariot.system_resources import get_available_system_gpus

print(get_available_system_gpus())

Now, with the correct project_id, you have everything you need to start a run:

from chariot.projects import get_project_id
from chariot.training_v2 import create_run, Resources, Gpu

project_id = get_project_id(project_name="<PROJECT NAME>")
run_id = create_run(
   config=config,
   name="<NAME OF RUN>",
   version="1",
   resources=Resources(cpu="1", memory="2Gi", ephemeral_storage="2Gi", gpu=Gpu(count=1, type="Tesla-T4")),
   task_type="Image Segmentation",
   project_id=project_id,
   blueprint_id=blueprint_id,
   notes="experimenting with new model architecture."
)

Monitoring a Training Run

The status, checkpoints, and metrics of a Training Run can be retrieved through the UI or SDK.

UI

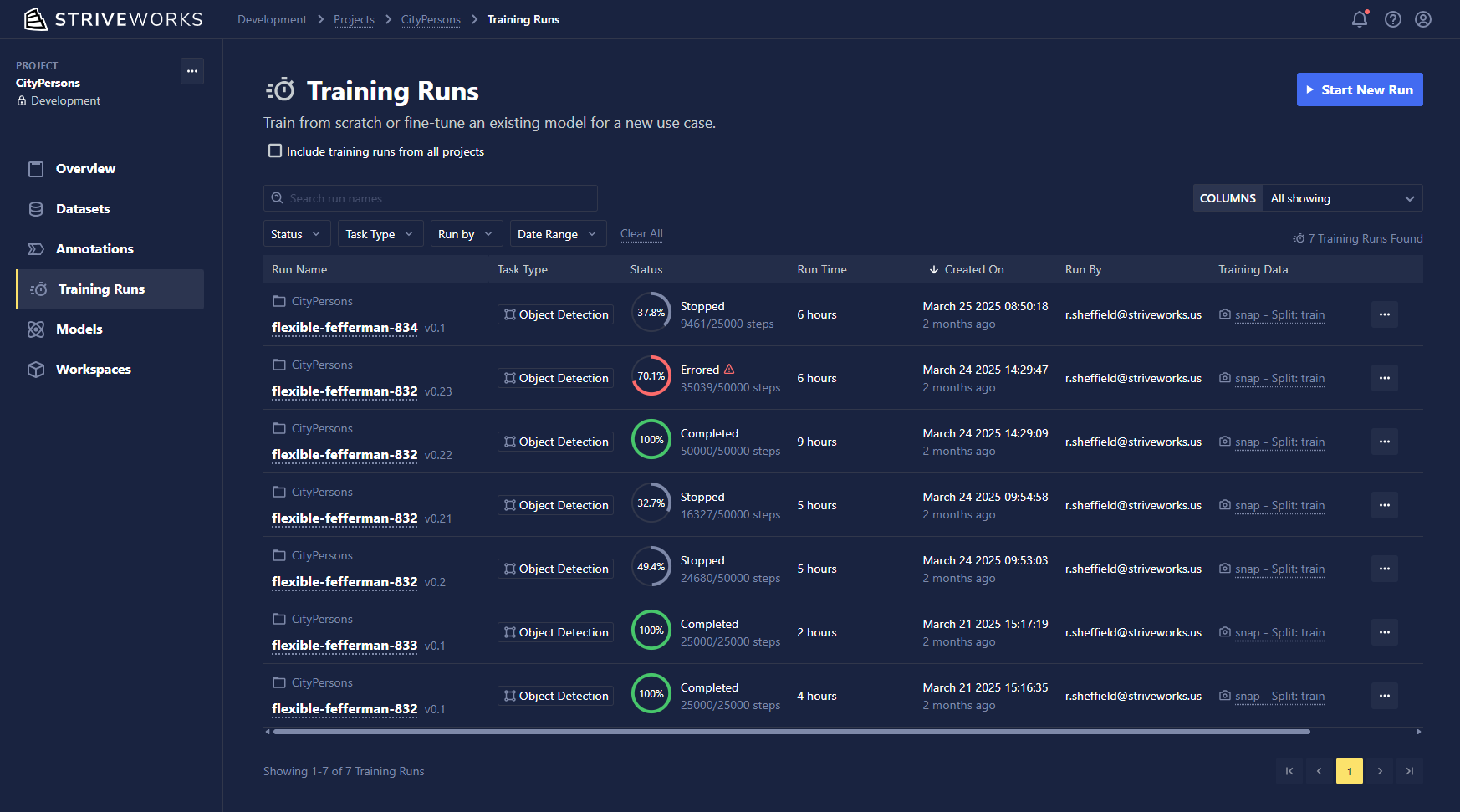

Within a project, the Training Runs page lists all Training Runs associated with that project, along with details about their status and any actions that can be accomplished with that Training Run.

Click on the run name for detailed information about your Training Run, including the tabs below.

SDK

An existing run and its status can be retrieved via:

from chariot.training_v2 import Run

# singular check
run = Run.from_id(run_id=run_id)
print(run.status)
print(run.get_events()[0])

# poll status with reload
while True:
   run.reload()
   print(run.status)
   print(run.get_events()[0])

'''
Example output:
run_created
Event(id='2aV6nrv2f4lSLl1upjn3lnktlxr', sequence=9012, run_id='2aV6Qg2CuryJPsSk8sn0NfPqziU', created_at=datetime.datetime(2024, 1, 4, 13, 6, 6), status='job_completed', details={}),
'''

Details

The Details tab summarizes key aspects of your Training Run, including its status, selected settings, and information associated with the dataset you choose to train on.

Checkpoints

UI

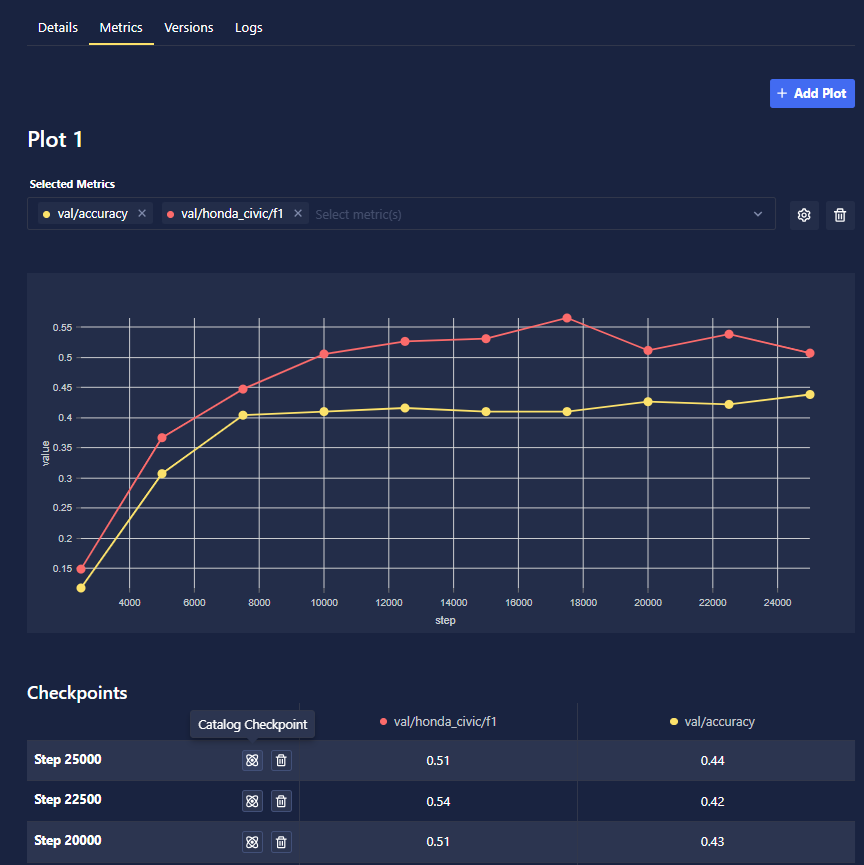

As your Training Run progresses, Chariot saves the model periodically, based on the checkpoint frequency that you specified when setting up the run. The checkpoints table found via the Metrics tab lists those checkpoints for your Training Run. Click on the Catalog Checkpoint button to export them directly into the Model Catalog feature. Checkpoints may also be removed by clicking the Delete Checkpoint button.

SDK

Given the run_id, you can retrieve checkpoint information via:

from chariot.training_v2 import get_checkpoints

checkpoints = get_checkpoints(run_ids=[run_id])
print(checkpoints)

'''
Example output:
[Checkpoint(id='2aV6iX2usTLfLfA1SMrlBjCSIql', run_id='2aV6Qg2CuryJPsSk8sn0NfPqziU', global_step=10, project_id='2ZC3RlYNMkOPK8FppryaWlIqCDI', created_at=datetime.datetime(2024, 1, 4, 13, 5, 26, 260000), status='complete', status_updated_at=datetime.datetime(2024, 1, 4, 13, 6, 1, 559000))]
'''

Logs

The Logs tab provides access to two types of logging information from your Training Runs: container logs and pod events.

Container Logs

Container logs show output directly from your Training Run container, including your application logs, print statements, and any error messages from your training code.

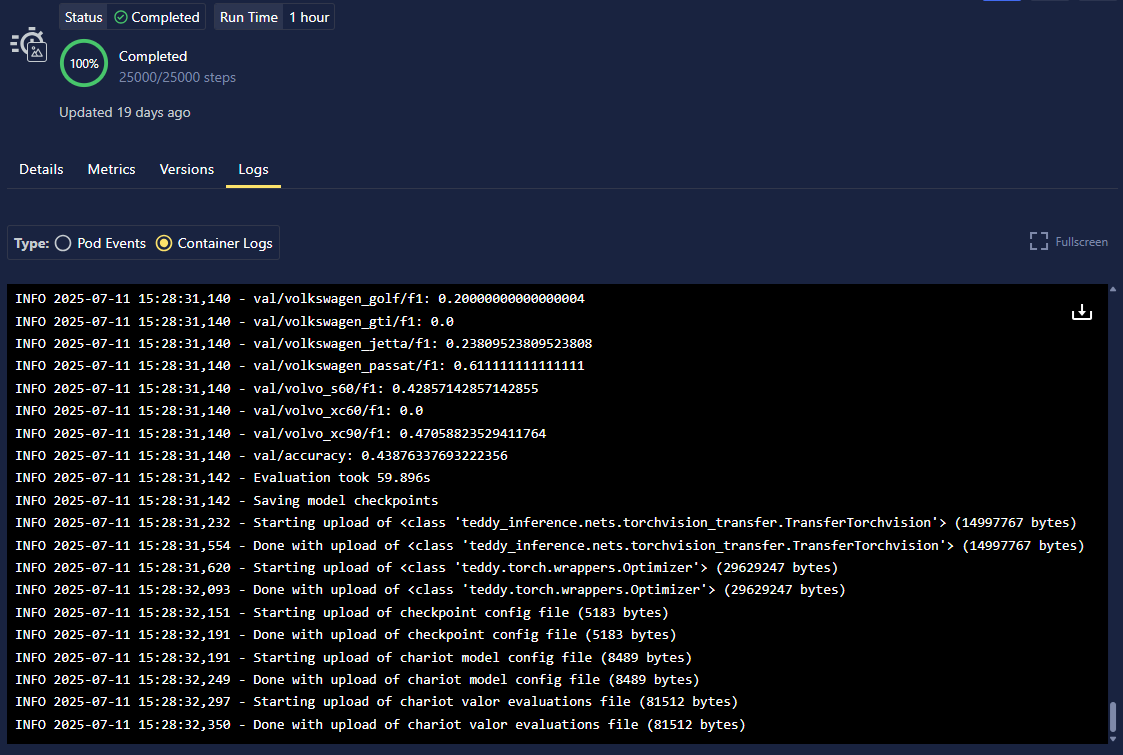

Select the Container Logs radio button to view logs from the training container.

Pod Events

Pod events provide infrastructure-level logs from the Kubernetes system that schedules and manages your training containers. These logs are useful for troubleshooting deployment and resource issues.

UI

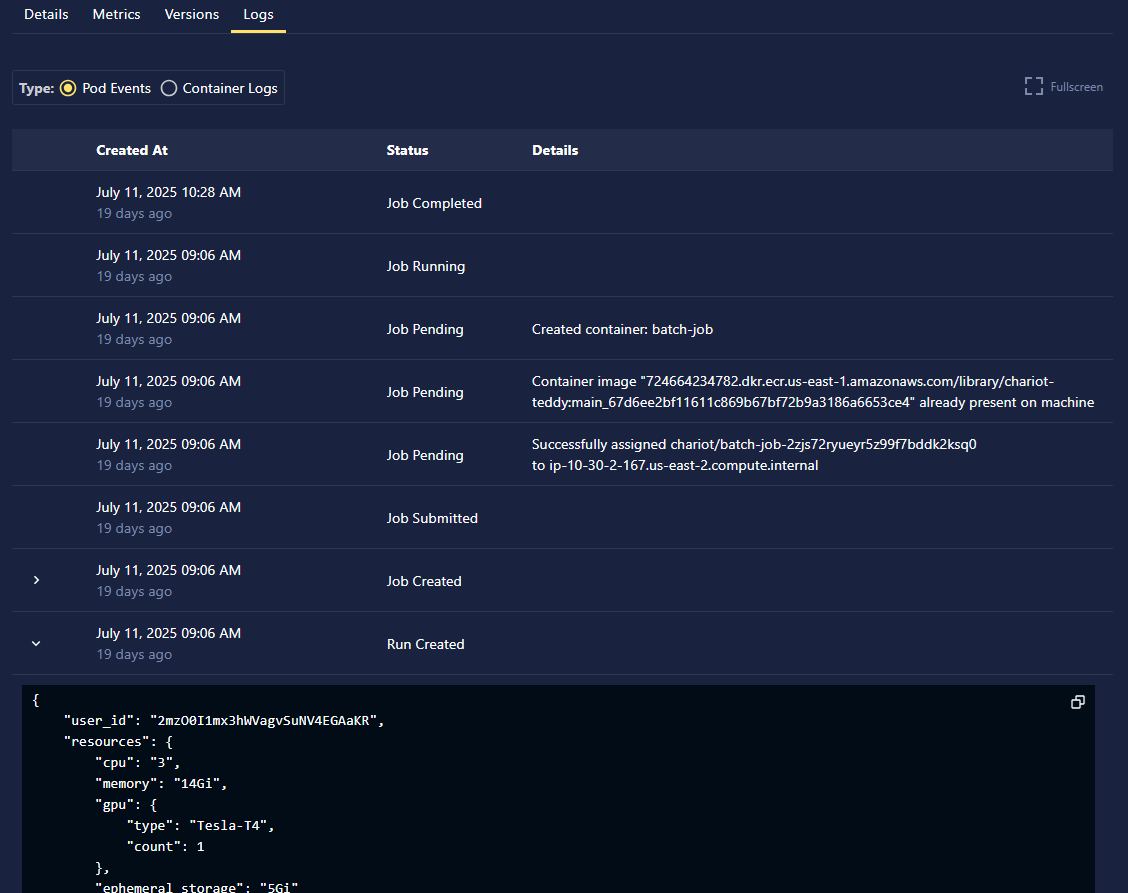

Select the Pod Events radio button to view infrastructure logs from Kubernetes.

SDK

Retrieve pod events using the SDK:

from chariot.training_v2 import Run

run = Run.from_id(run_id=run_id)
print(run.get_events()[0])

Metrics

UI

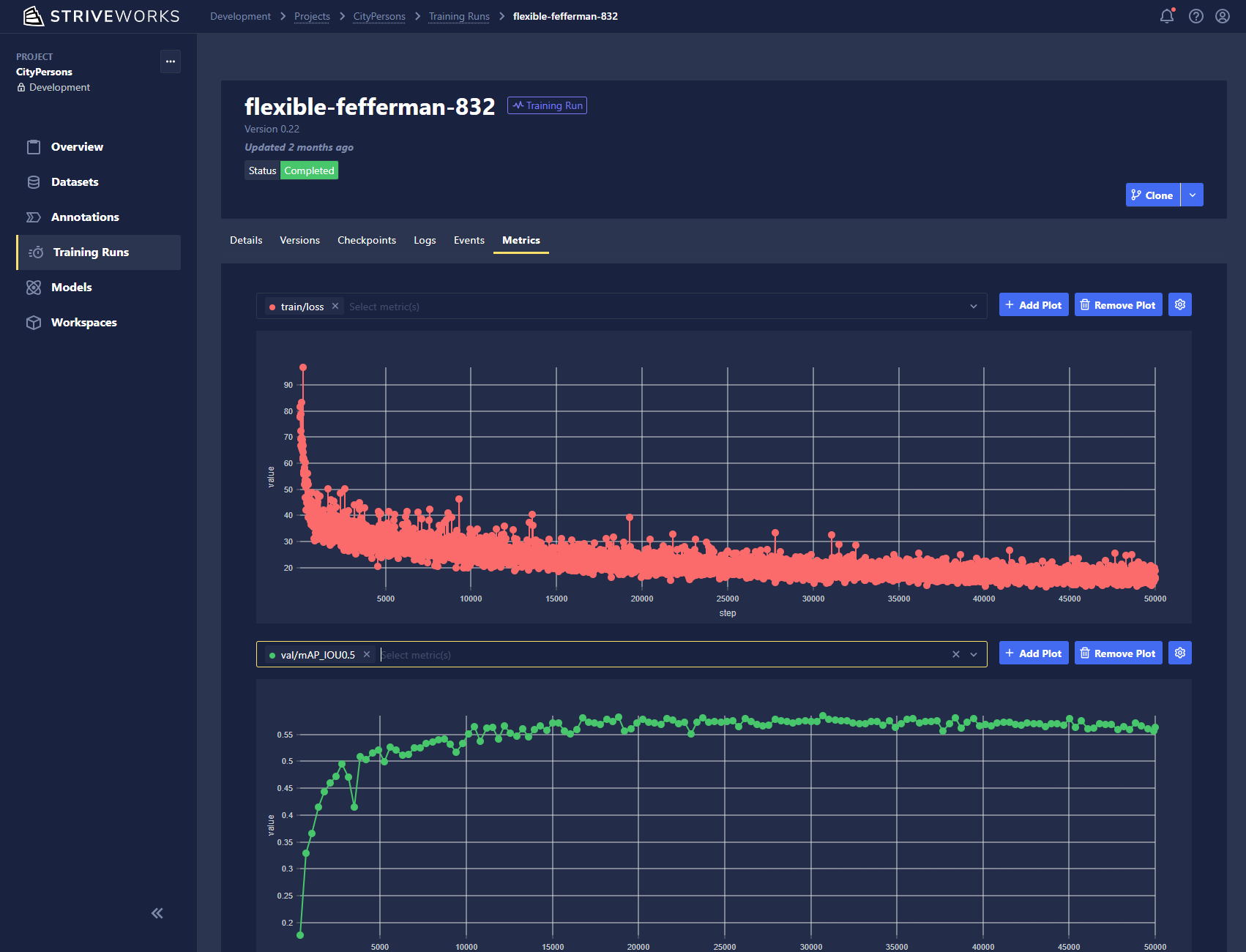

This tab displays plots from metrics that get recorded during training, such as the training loss and validation accuracies. You can also view the performance of your model at different checkpoints within this tab.

SDK

Metrics can be retrieved from the SDK via:

from chariot.training_v2 import Run

#Assumes `run` is the training_v2 Run class imported from above.
metrics = run.get_metrics()
print(metrics)

'''
Example output:
[Metric(id='2aV6m2Vk7IIcauG8LOKZuySkNTy', created_at=datetime.datetime(2024, 1, 4, 13, 5, 54, 379000), run_id='2aV6Qg2CuryJPsSk8sn0NfPqziU', global_step=10, tag='val/class_building/f1', value=0)]'''

Restarting a Training Run

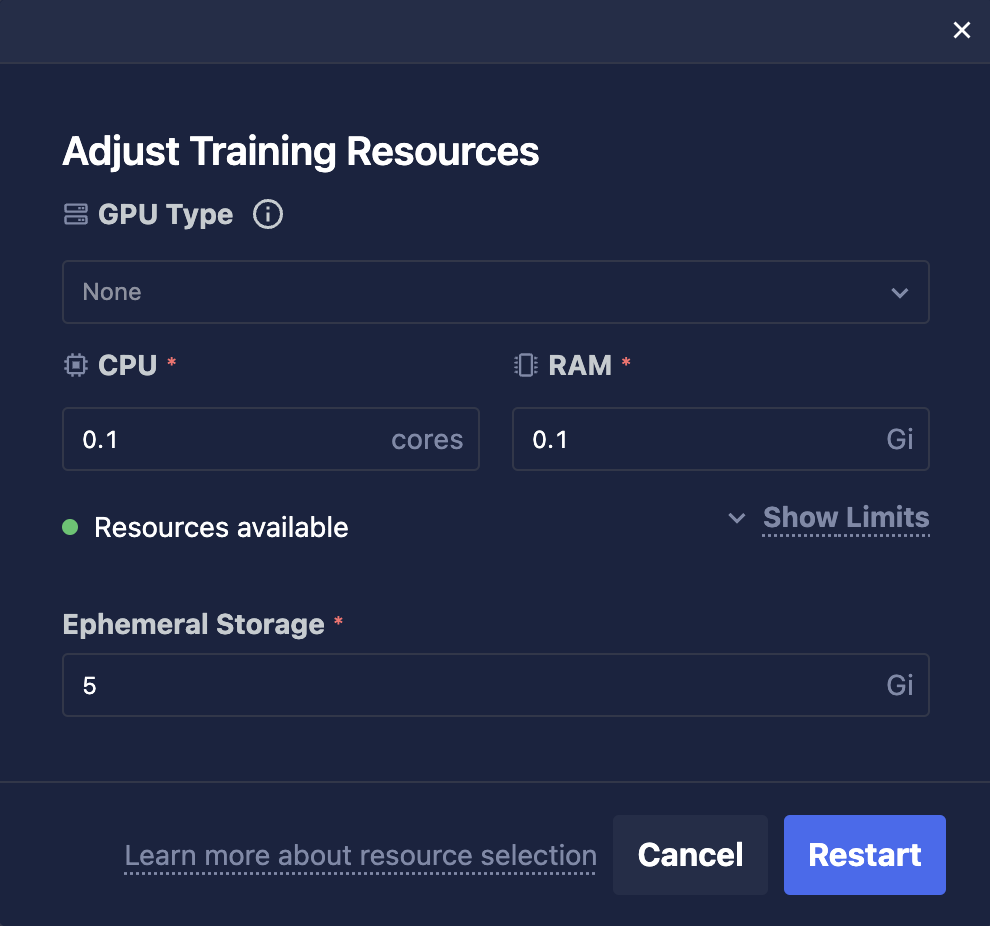

A Training Run that resulted in an error or that has been stopped may be restarted. When selecting the Restart Run button, you'll be presented with a modal for adjusting resources from the previous setting.

The modal will be populated with the previous settings. If you'd like to simply restart the run with the same settings, you can then click Restart. However, you can also adjust resources as needed and then click Restart.

Note that this will update the existing run rather than create a new run. If you would like to view previous resource settings from the run, you can view those in the Events tab under Run Restart Requested statuses.

Cloning a Training Run

There may be cases when you want to restart a Training Run using a previous run's settings with some tweaks. Chariot supports this via the ability to clone a Training Run.

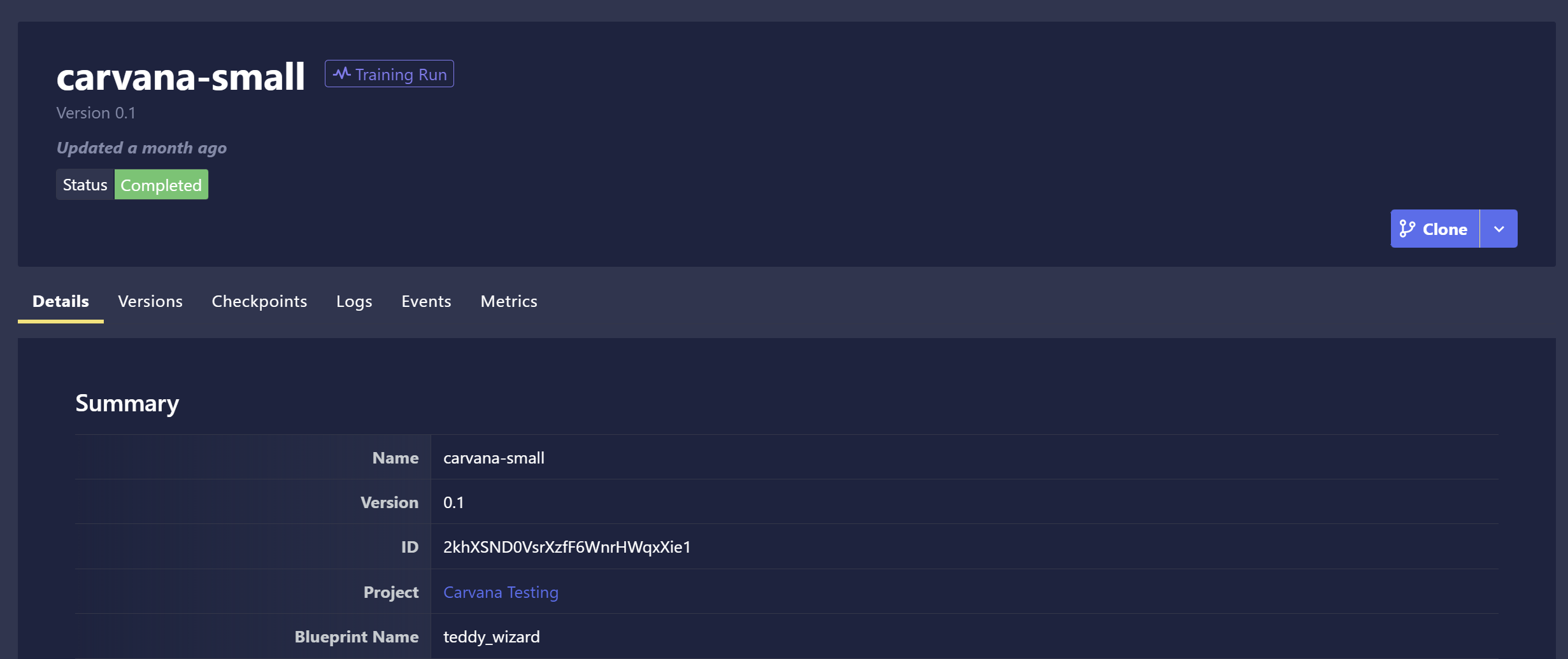

To clone a Training Run, go to the Training Runs page and click the Clone button on the right side of the page. You will then be redirected to the Training Run process described earlier, with the settings of the selected Training Run pre-populated in all the fields. You may still make changes to any Training Run settings prior to running it.

On this page, you will find additional options:

• Delete Run: Delete the Training Run and its associated data.
• Copy Training Config: Copy the JSON configuration text that specifies the training settings to be utilized with the Use Custom Config option when creating a new Training Run.

Appendix

Sizes of Available Models

The size of a model depends on the number of trainable parameters it has. This is often a consideration when choosing a model as larger models tend to take longer to train but often have the capability to be more accurate. Below is a table of currently supported models in Chariot and their sizes.

note

We call a model "small" if it has fewer than 10,000,000 trainable parameters, "medium" if it has between 10,000,000 and 30,000,000 trainable parameters, and "large" if it has more than 30,000,000 trainable parameters.

Image Classification

Model Name	Architecture	Size	Number of Trainable Parameters	Memory Footprint
squeezenet1_1	squeezenet1_1 (Torchvision)	Small	1,245,506	4 MB
squeezenet1_0	squeezenet1_0 (Torchvision)	Small	1,258,434	4 MB
shufflenet_v2_x0_5	shufflenet_v2_x0_5 (Torchvision)	Small	1,376,802	5 MB
mnasnet0_5	mnasnet0_5 (Torchvision)	Small	2,228,522	8 MB
shufflenet_v2_x1_0	shufflenet_v2_x1_0 (Torchvision)	Small	2,288,614	8 MB
mobilenet_v3_small	mobilenet_v3_small (Torchvision)	Small	2,552,866	9 MB
mnasnet0_75	mnasnet0_75 (Torchvision)	Small	3,180,218	12 MB
shufflenet_v2_x1_5	shufflenet_v2_x1_5 (Torchvision)	Small	3,513,634	13 MB
mobilenet_v2	mobilenet_v2 (Torchvision)	Small	3,514,882	13 MB
regnet_y_400mf	regnet_y_400mf (Torchvision)	Small	4,354,154	16 MB
mnasnet1_0	mnasnet1_0 (Torchvision)	Small	4,393,322	16 MB
efficientnet_b0	efficientnet_b0 (Torchvision)	Small	5,298,558	20 MB
mobilenet_v3_large	mobilenet_v3_large (Torchvision)	Small	5,493,042	21 MB
regnet_x_400mf	regnet_x_400mf (Torchvision)	Small	5,505,986	21 MB
mnasnet1_3	mnasnet1_3 (Torchvision)	Small	6,292,266	24 MB
regnet_y_800mf	regnet_y_800mf (Torchvision)	Small	6,442,522	24 MB
regnet_x_800mf	regnet_x_800mf (Torchvision)	Small	7,269,666	27 MB
shufflenet_v2_x2_0	shufflenet_v2_x2_0 (Torchvision)	Small	7,404,006	28 MB
efficientnet_b1	efficientnet_b1 (Torchvision)	Small	7,804,194	30 MB
densenet121	densenet121 (Torchvision)	Small	7,988,866	30 MB
efficientnet_b2	efficientnet_b2 (Torchvision)	Small	9,120,004	35 MB
regnet_x_1_6gf	regnet_x_1_6gf (Torchvision)	Small	9,200,146	35 MB
regnet_y_1_6gf	regnet_y_1_6gf (Torchvision)	Medium	11,212,440	42 MB
resnet18	resnet18 (Torchvision)	Medium	11,699,522	44 MB
efficientnet_b3	efficientnet_b3 (Torchvision)	Medium	12,243,242	47 MB
googlenet	googlenet (Torchvision)	Medium	13,014,898	49 MB
densenet169	densenet169 (Torchvision)	Medium	14,159,490	54 MB
regnet_x_3_2gf	regnet_x_3_2gf (Torchvision)	Medium	15,306,562	58 MB
efficientnet_b4	efficientnet_b4 (Torchvision)	Medium	19,351,626	74 MB
regnet_y_3_2gf	regnet_y_3_2gf (Torchvision)	Medium	19,446,348	74 MB
densenet201	densenet201 (Torchvision)	Medium	20,023,938	77 MB
resnet34	resnet34 (Torchvision)	Medium	21,807,682	83 MB
resnext50_32x4d	resnext50_32x4d (Torchvision)	Medium	25,038,914	95 MB
resnet50	resnet50 (Torchvision)	Medium	25,567,042	97 MB
inception_v3	inception_v3 (Torchvision)	Medium	27,171,274	103 MB
swin_t	swin_t (Torchvision)	Medium	28,298,364	108 MB
convnext_tiny	convnext_tiny (Torchvision)	Medium	28,599,138	109 MB
densenet161	densenet161 (Torchvision)	Medium	28,691,010	110 MB
efficientnet_b5	efficientnet_b5 (Torchvision)	Large	30,399,794	116 MB
regnet_y_8gf	regnet_y_8gf (Torchvision)	Large	39,391,482	150 MB
regnet_x_8gf	regnet_x_8gf (Torchvision)	Large	39,582,658	151 MB
efficientnet_b6	efficientnet_b6 (Torchvision)	Large	43,050,714	165 MB
resnet101	resnet101 (Torchvision)	Large	44,559,170	170 MB
swin_s	swin_s (Torchvision)	Large	49,616,268	189 MB
convnext_small	convnext_small (Torchvision)	Large	50,233,698	191 MB
regnet_x_16gf	regnet_x_16gf (Torchvision)	Large	54,288,546	207 MB
resnet152	resnet152 (Torchvision)	Large	60,202,818	230 MB
alexnet	alexnet (Torchvision)	Large	61,110,850	233 MB
efficientnet_b7	efficientnet_b7 (Torchvision)	Large	66,357,970	254 MB
wide_resnet50_2	wide_resnet50_2 (Torchvision)	Large	68,893,250	263 MB
resnext101_64x4d	resnext101_64x4d (Torchvision)	Large	83,465,282	319 MB
regnet_y_16gf	regnet_y_16gf (Torchvision)	Large	83,600,150	319 MB
vit_b_16	vit_b_16 (Torchvision)	Large	86,577,666	330 MB
swin_b	swin_b (Torchvision)	Large	87,778,234	335 MB
vit_b_32	vit_b_32 (Torchvision)	Large	88,234,242	336 MB
convnext_base	convnext_base (Torchvision)	Large	88,601,474	337 MB
resnext101_32x8d	resnext101_32x8d (Torchvision)	Large	88,801,346	339 MB
regnet_x_32gf	regnet_x_32gf (Torchvision)	Large	107,821,570	411 MB
wide_resnet101_2	wide_resnet101_2 (Torchvision)	Large	126,896,706	484 MB
vgg11	vgg11 (Torchvision)	Large	132,873,346	506 MB
vgg11_bn	vgg11_bn (Torchvision)	Large	132,878,850	506 MB
vgg13	vgg13 (Torchvision)	Large	133,057,858	507 MB
vgg13_bn	vgg13_bn (Torchvision)	Large	133,063,746	507 MB
vgg16	vgg16 (Torchvision)	Large	138,367,554	527 MB
vgg16_bn	vgg16_bn (Torchvision)	Large	138,376,002	527 MB
vgg19	vgg19 (Torchvision)	Large	143,677,250	548 MB
vgg19_bn	vgg19_bn (Torchvision)	Large	143,688,258	548 MB
regnet_y_32gf	regnet_y_32gf (Torchvision)	Large	145,056,780	553 MB
convnext_large	convnext_large (Torchvision)	Large	197,777,346	754 MB
vit_l_16	vit_l_16 (Torchvision)	Large	304,336,642	1,160 MB
vit_l_32	vit_l_32 (Torchvision)	Large	306,545,410	1,169 MB
vit_h_14	vit_h_14 (Torchvision)	Large	632,055,810	2,411 MB
regnet_y_128gf	regnet_y_128gf (Torchvision)	Large	644,822,904	2,461 MB

Object Detection

Model Name	Architecture	Size	Number of Trainable Parameters	Memory Footprint
YOLOv8_nano	YOLOv8 - Nano	Small	3,012,782	11 MB
YOLOv8_small	YOLOv8 - Small	Medium	11,139,454	42 MB
FasterRCNNMobileNetV3SmallFPN	Faster R-CNN with mobilenet_v3_small backbone	Medium	16,823,453	64 MB
FasterRCNNMobileNetV3LargeFPN	Faster R-CNN with mobilenet_v3_large backbone	Medium	18,970,397	72 MB
FasterRCNNMobileNetV3Large320FPN	Faster R-CNN with mobilenet_v3_large backbone	Medium	18,970,397	72 MB
FCOSResnet18FPN	Fully Convolutional One Stage (FCOS) with resnet18 backbone	Medium	19,106,767	72 MB
RetinaNetResnet18FPN	RetinaNet with resnet18 backbone	Medium	19,358,526	73 MB
YOLOv8_medium	YOLOv8 - Medium	Medium	25,862,094	98 MB
FasterRCNNResnet18FPN	Faster R-CNN with resnet18 backbone	Medium	28,314,881	108 MB
FCOSResnet34FPN	Fully Convolutional One Stage (FCOS) with resnet34 backbone	Medium	29,207,503	111 MB
RetinaNetResnet34FPN	RetinaNet with resnet34 backbone	Medium	29,459,262	112 MB
FCOSResnet50FPN	Fully Convolutional One Stage (FCOS) with resnet50 backbone	Large	32,082,895	122 MB
RetinaNetResnet50FPN	RetinaNet with resnet50 backbone	Large	32,334,654	123 MB
FasterRCNNResnet34FPN	Faster R-CNN with resnet34 backbone	Large	38,415,617	146 MB
FasterRCNNResnet50FPN	Faster R-CNN with resnet50 backbone	Large	41,340,161	158 MB
YOLOv8_large	YOLOv8 - Large	Large	43,637,534	166 MB
FCOSResnet101FPN	Fully Convolutional One Stage (FCOS) with resnet101 backbone	Large	51,022,799	195 MB
RetinaNetResnet101FPN	RetinaNet with resnet101 backbone	Large	51,274,558	196 MB
FasterRCNNResnet101FPN	Faster R-CNN with resnet101 backbone	Large	60,280,065	230 MB
YOLOv8_xl	YOLOv8 - Extra large	Large	68,162,222	260 MB

Image Segmentation

Model Name	Architecture	Size	Number of Trainable Parameters	Memory Footprint
lraspp_mobilenet_v3_large	lraspp_mobilenet_v3_large (Torchvision)	Small	3,219,668	12 MB
deeplabv3_mobilenet_v3_large	deeplabv3_mobilenet_v3_large (Torchvision)	Medium	11,022,650	42 MB
fcn_resnet50	fcn_resnet50 (Torchvision)	Large	32,951,370	125 MB
deeplabv3_resnet50	deeplabv3_resnet50 (Torchvision)	Large	39,636,042	151 MB
fcn_resnet101	fcn_resnet101 (Torchvision)	Large	51,943,498	198 MB
deeplabv3_resnet101	deeplabv3_resnet101 (Torchvision)	Large	58,628,170	224 MB
